TECHNICAL SPECIFICATIONS

     技术规格

1、Rated voltage：5VDC ～ 36VDC.

     额定电压：5VDC ～36VDC

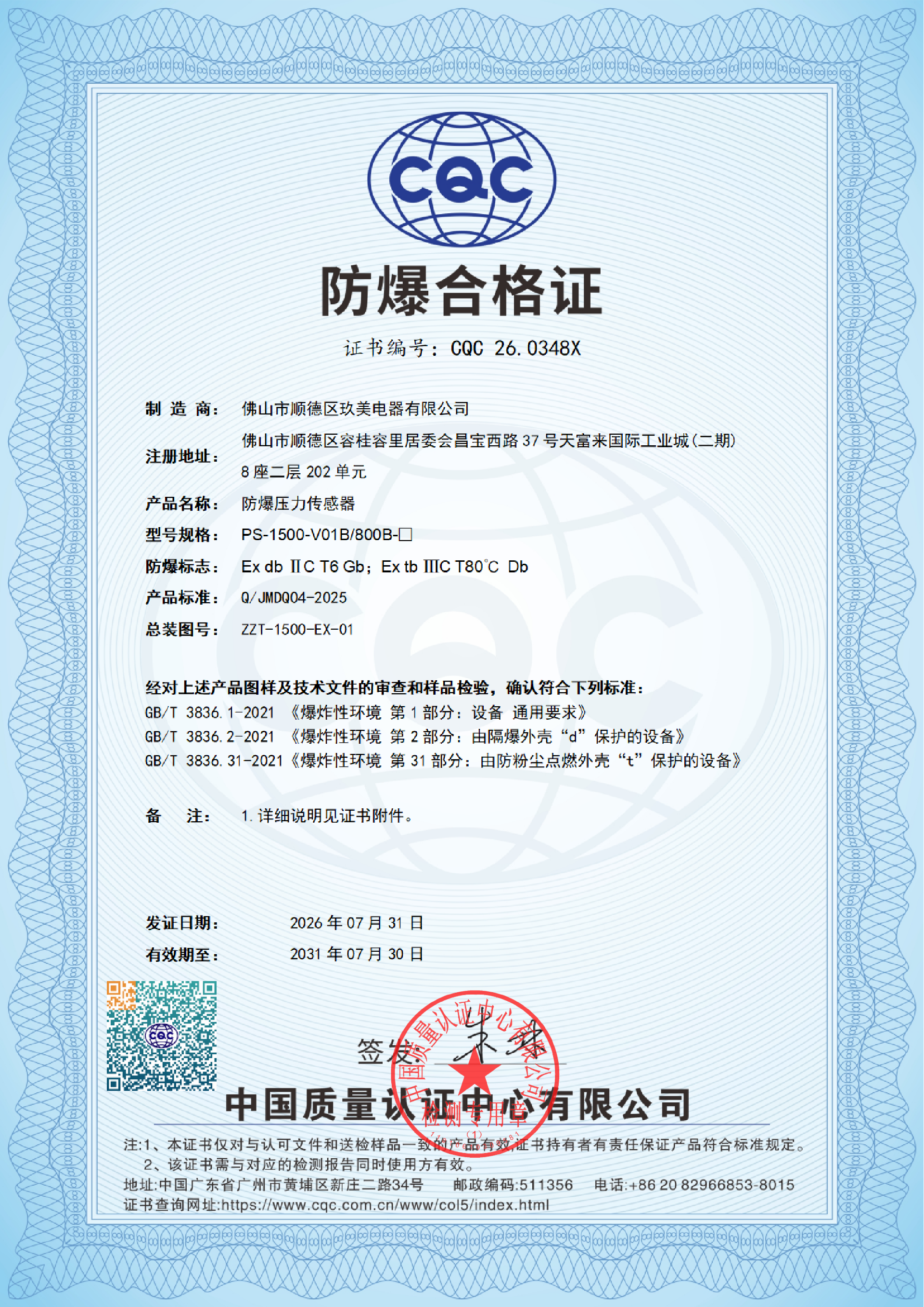

2、Ex‑proof mark：Ex db ⅡC T6 Gb，Ex tb ⅢC T80℃ Db.

     防爆标志：Ex db ⅡC T6 Gb，Ex tb ⅢC T80℃ Db

3、IP type：67.

     防护等级：IP67

4、Temperature of the working environment: -40℃ ~ + 70℃

     (70±3℃，1% FS; -40±3℃，1% FS; 25±3℃，0.5% FS).

    工作环境温度：‑40℃ ～ +70℃

   （70±3℃，满量程误差 1%；‑40±3℃，满量程误差 1%；25±3℃，满量程误差 0.5%）

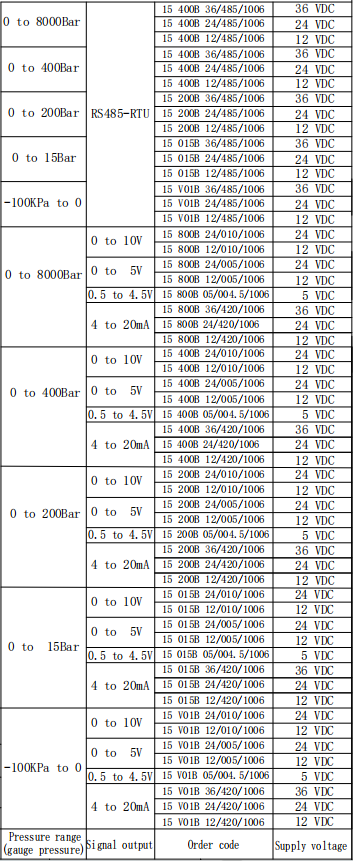

5、Model：PS‑1500‑V01B/800B‑X.

     型号：PS‑1500‑V01B/800B‑X

6、Working pressure：‑100KPa～8000bar (Pressure options).

     工作压力：‑100KPa～8000bar（压力可选）

7、Compliance with Q/JMDQ01‑2025 "Ex‑proof pressure sensor" enterprise standard provisions and IEC IEC60079‑0、IEC60069‑1、IEC60079‑31.

     符合 Q/JMDQ01‑2025《防爆压力传感器》企业标准规定，以及 IEC 60079‑0、IEC 60069‑1、IEC 60079‑31 标准。

8、The joint parts of all parts should be welded firmly,and there shall be no bad phenomena such as defect welding,the joint surface shall not have scratches and other defects.

     所有零部件焊接连接处应焊接牢固，不得存在虚焊、焊接缺陷等不良现象；接合面不得有划痕及其他损伤缺陷。

9、The outer surface without any paint or other coatings.

     外表面不得涂刷油漆或其他涂层

10、The net volume of the inner chamber <10cm³.

       内腔净容积＜10 立方厘米

11、Outer casing to withstands 1.5 times reference pressure for more than 10 seconds, only passes test with no water leakage and permanent deformation of case.

       外壳可承受 1.5 倍基准压力，保压 10 秒以上；外壳无渗漏、无永久变形方为试验合格。

12、Flameproof mating surface with anti‑rust oil applied.

       防爆接合面应涂抹防锈油。

13、The flameproof enclosure is made of SUS304, with the total content of magnesium (Mg) and titanium (Ti) and zirconium (Zr) not exceeding 7.5%.

       防爆外壳材质为 SUS304 不锈钢；镁 (Mg)、钛 (Ti)、锆 (Zr) 元素总含量不大于 7.5%。

14、The thread shall be a metric thread of coarse pitch in accordance with ISO 262, with a tolerance fit of 6g/6H in accordance with ISO 965‑1 and ISO 965‑3;

       The internal thread shall have a tolerance class of 6H in accordance with ISO 965‑1 and ISO 965‑3.

       螺纹采用 ISO 262 规定的公制粗牙螺纹；配合公差按 ISO 965‑1、ISO 965‑3 执行，公差配合等级 6g/6H；内螺纹公差等级为 6H（依据 ISO 965‑1、ISO 965‑3）。
