Working pressure：15～450PSI Optional

Electrical load：5V/12V/24/36 VDC & 5V/12V/24/36 VAC, Max.1A;
                          50/60Hz 110/125/250VAC, Max.3A

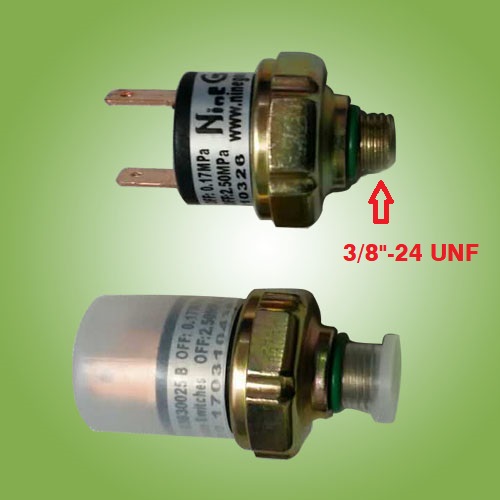

The product is manufactured using internationally advanced stainless steel pressure sensors (stainless steel diaphragm boxes, stainless steel diaphragms),

which have excellent qualities such as small size, easy installation, precise pressure control, and stable performance.

The pressure inside the automatic measurement and control system prevents the pressure inside the system from being too high or too low, outputs switch signals,

and ensures that the equipment operates within a safe pressure range.

Suitable for different fluid pressure media: refrigerant, compressed air, hydraulic oil, etc.

Widely used in automotive air conditioning, air compressors, air pumps, hydraulic pneumatic and vacuum systems.
