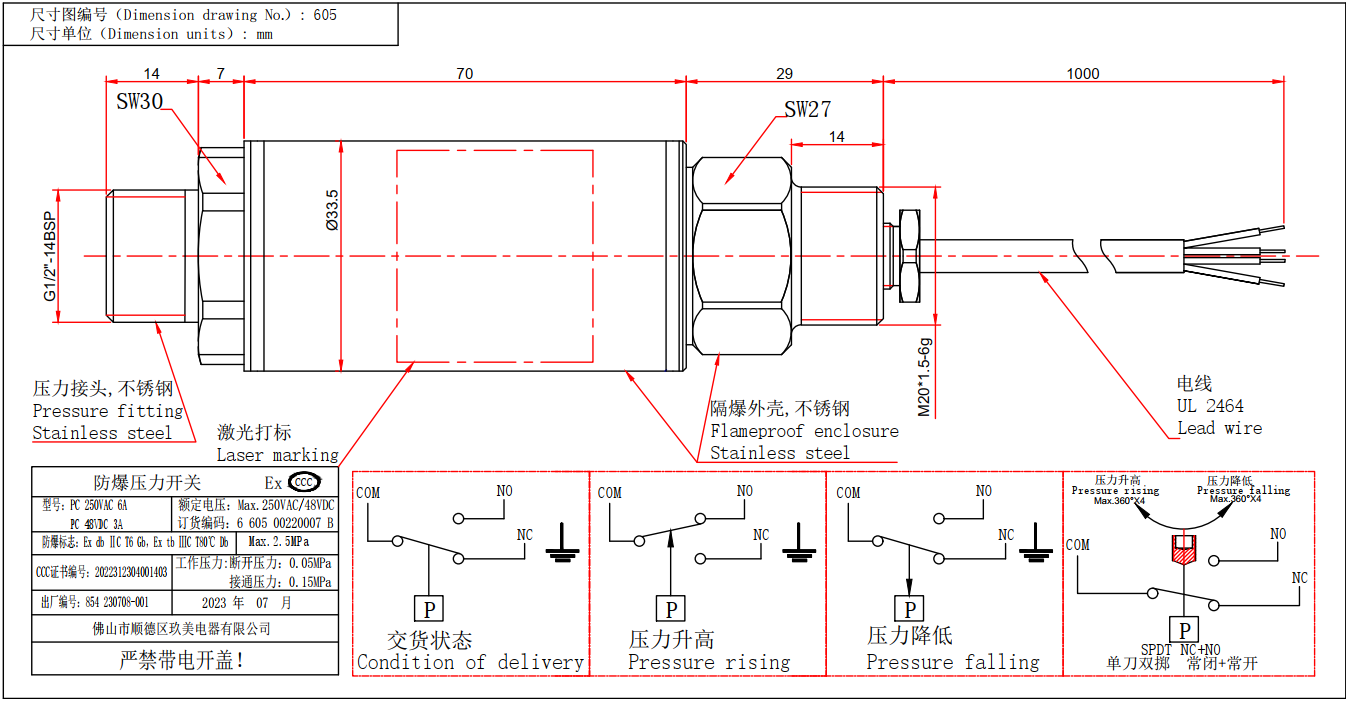

Product Name: Explosion proof Pressure Switch

Working pressure：-14.5～3600PSI Optional

Model：PC 250VAC 6A、PC 48VDC 3A

Explosion proof Mark: Ex db IIC T6 Gb,Ex tb IIIC T80℃ Db

Shell protection level: IP67

CCC certificate number: 2022312304001403

Made with internationally advanced stainless steel pressure sensors, the overall stainless steel structure has good waterproof, dust-proof, and explosion-proof performance.

The pressure inside the automatic measurement and control system prevents the pressure inside the system from being too high or too low. It outputs switch signals and plays a role in overpressure and low-pressure alarms.

Ensure that equipment, systems, and personnel work within a safe pressure range.

Suitable for different fluid pressure media: water, steam, hydraulic oil, compressed air, industrial gas, air, water, seawater, tap water, river and lake water, well water, corrosive fluids, chemical agents, etc.

Applied in flammable and explosive hazardous areas, supporting explosion-proof electrical equipment such as hydraulic equipment, steam engines, air compressors,

hydraulic presses, air conditioners, boilers, electrical equipment, welding equipment, vacuum systems, rail locomotives, chemical machinery, etc.
