Wroking pressure：0～5KPa、0～10KPa、0～15KPa、0～20KPa、0～30KPa、0～50KPa、0～100KPa、0～150KPa、0～200KPa、0～300KPa、0～500KPa
Electrical load：DC/AC 5V/12V/24/36V Max.1A; 50/60Hz AC 125V/250V Max.3A
Steam temperature：Max.200℃

Made using internationally advanced stainless steel pressure sensors, with good high-temperature resistance, equipped with a condenser, automatic measurement and control system for steam pressure,

to prevent excessive or insufficient steam pressure in the system, output switch signals, and act as overpressure and low-pressure alarms. Ensure that equipment, systems,

and personnel work within a safe pressure range.

Applicable fluid pressure medium: steam.

Widely used for： steam engines, boilers, kitchenware, etc.

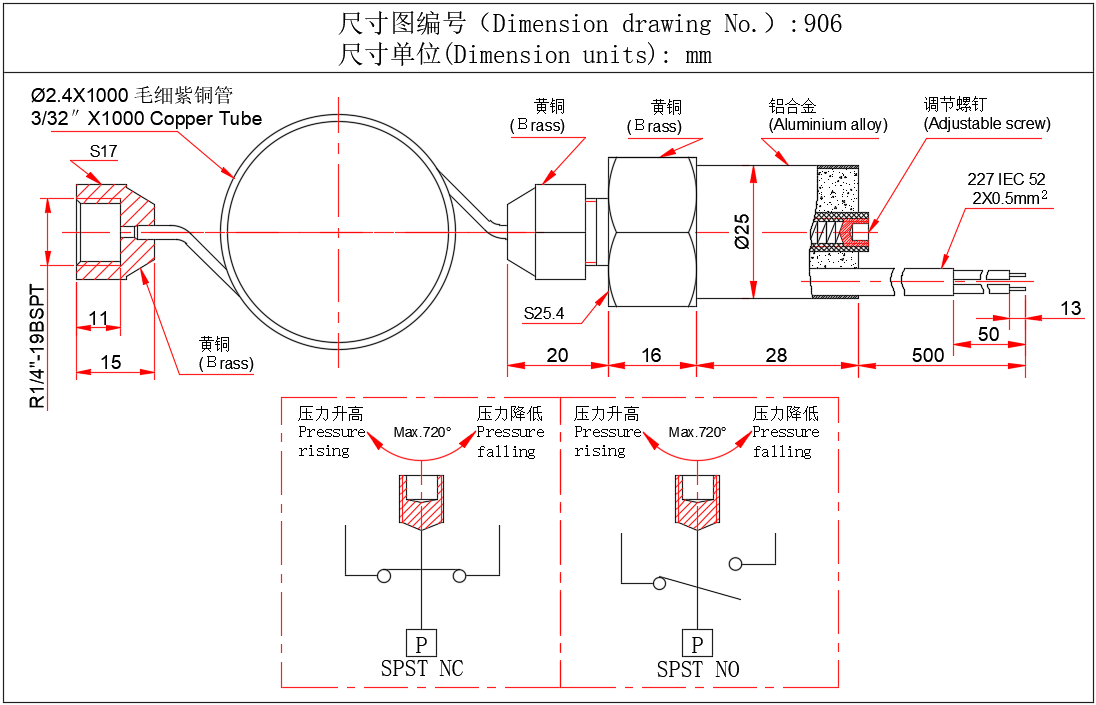

The thread specifications of the condenser tube client are optional and can be customized（M12*1.25 Male，G1/8" Male，G1/4" Male，R1/4" Female，G1/2" Male）
