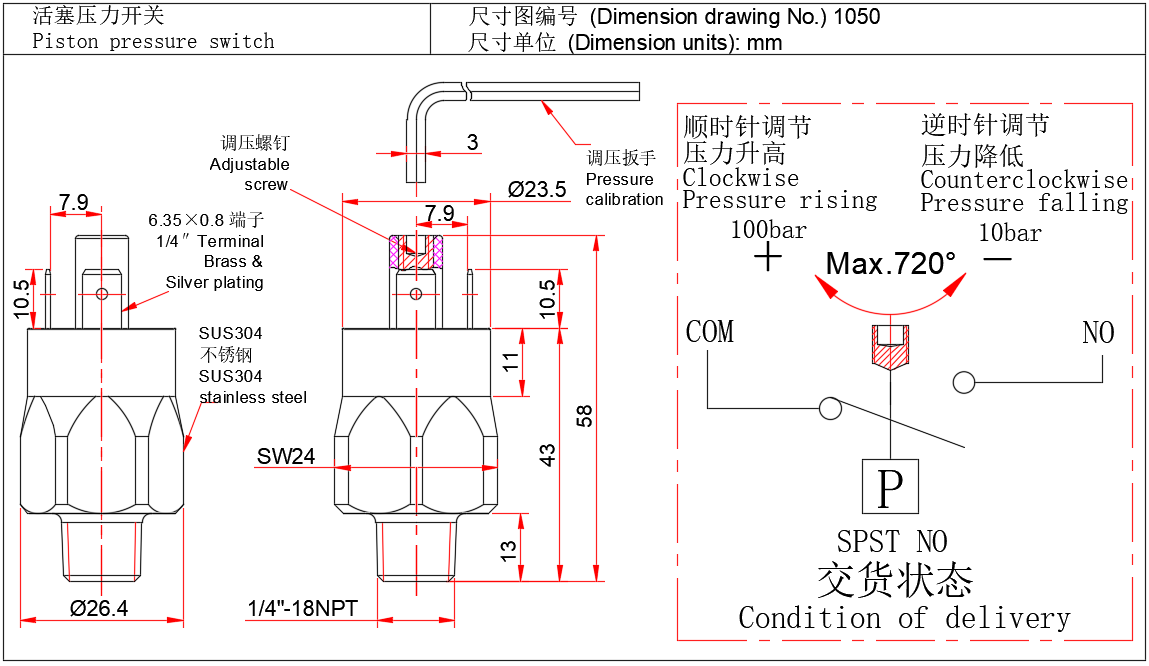

Adjustable working pressure: 10~100 bar, 10~120 bar, 50~150 bar.

Electrical load: DC/AC 5V/12V/24/36V Max.3A; 50/60Hz AC 125V/250V Max.6A.

Made of internationally advanced stainless steel pistons, it has excellent qualities such as compact size, easy installation, precise pressure control, stable performance, and convenient pressure regulation.

The automatic measurement and control system measures the pressure inside to prevent the system from being too high or too low and outputting switch signals.

Applicable fluid pressure media: compressed air, industrial gases, water, hydraulic oil, steam, etc.

Widely used in: air pumps, air compressors, hydraulic equipment, steam engines, water pumps, construction machinery, transportation equipment, etc.
